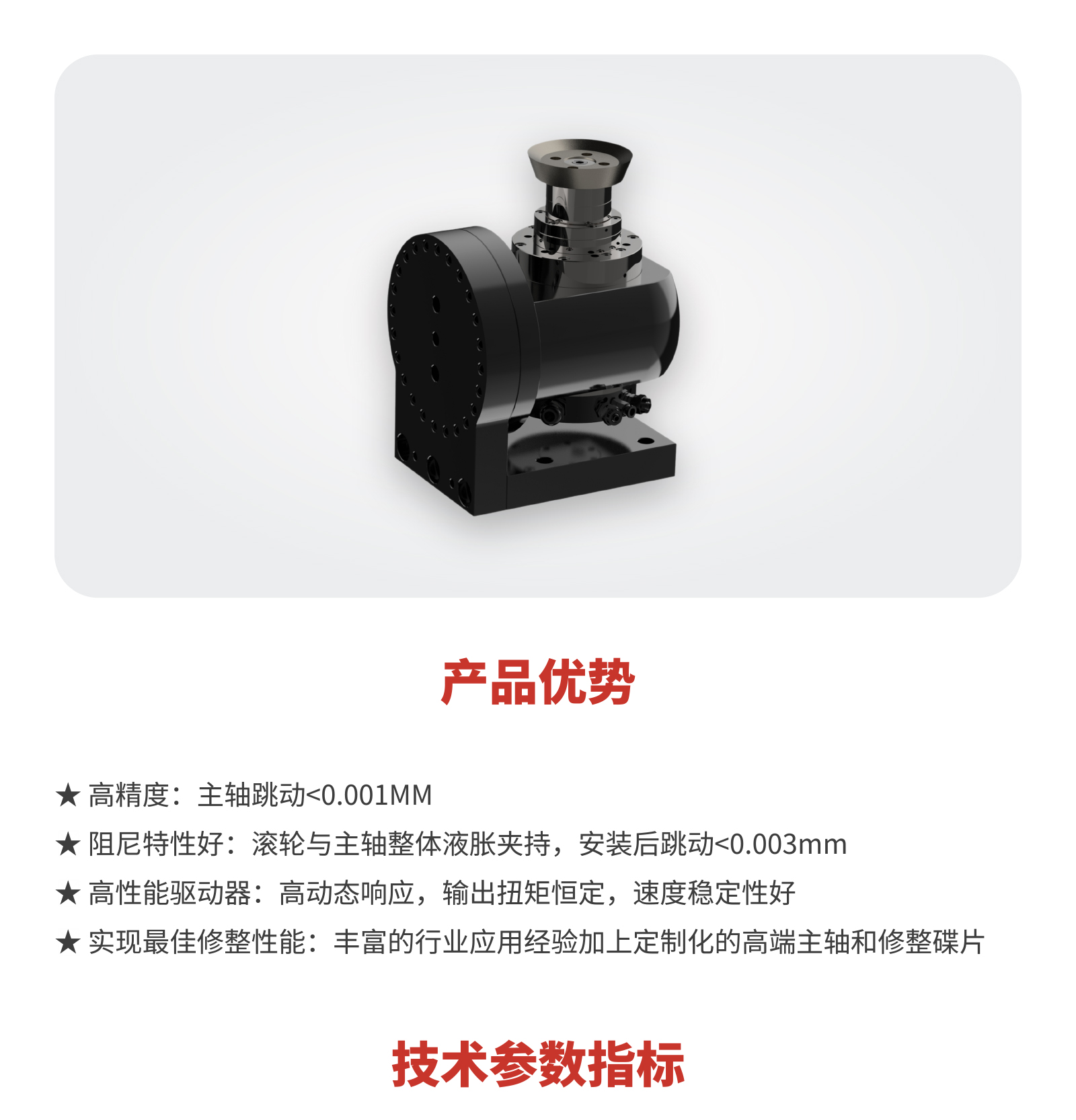

Dressing-Spindle
High precision: spindle runout<0.001mm, hydraulic tightening, roller runout < 0.003mm
High rigidity: The trimmer shaft core uses high damping material to greatly absorb the impact of modification and improve the effect of modification
High power: High power, high torque output. Greatly reduce the grinding wheel dressing time
PRODUCT ADVANTAGE
● High frequency trimmer, with different dressing wheels, can be trimmed
● Ceramic corundum grinding wheel
● Ceramic CBN grinding wheel
● Resin diamond grinding wheel, etc
● There are different schemes for different machine tools, such as coordinate grinding machine, milling center, internal and external circular grinding machine, gear grinding machine, etc

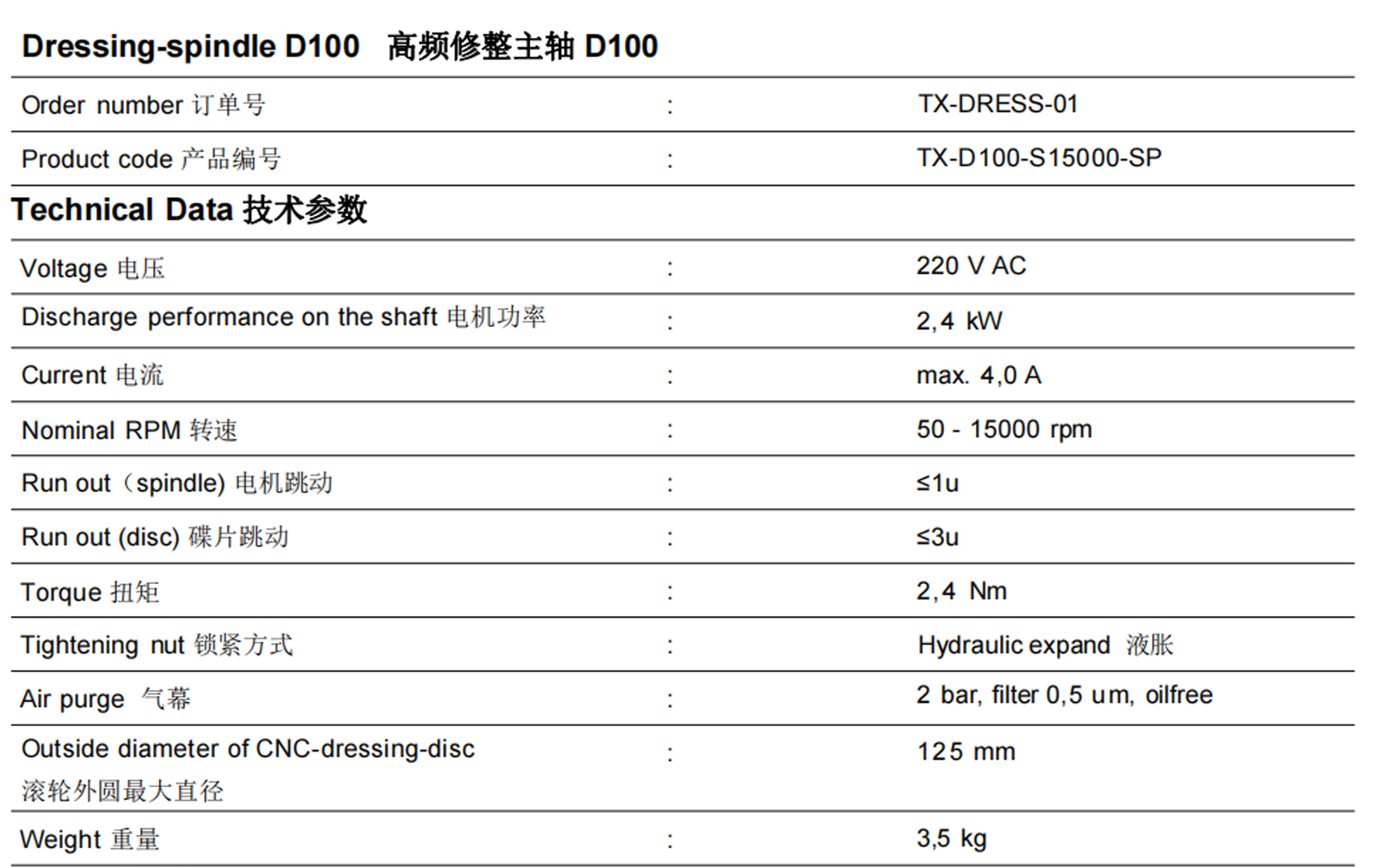

TECHNICAL PARAMETERS & INDICATORS

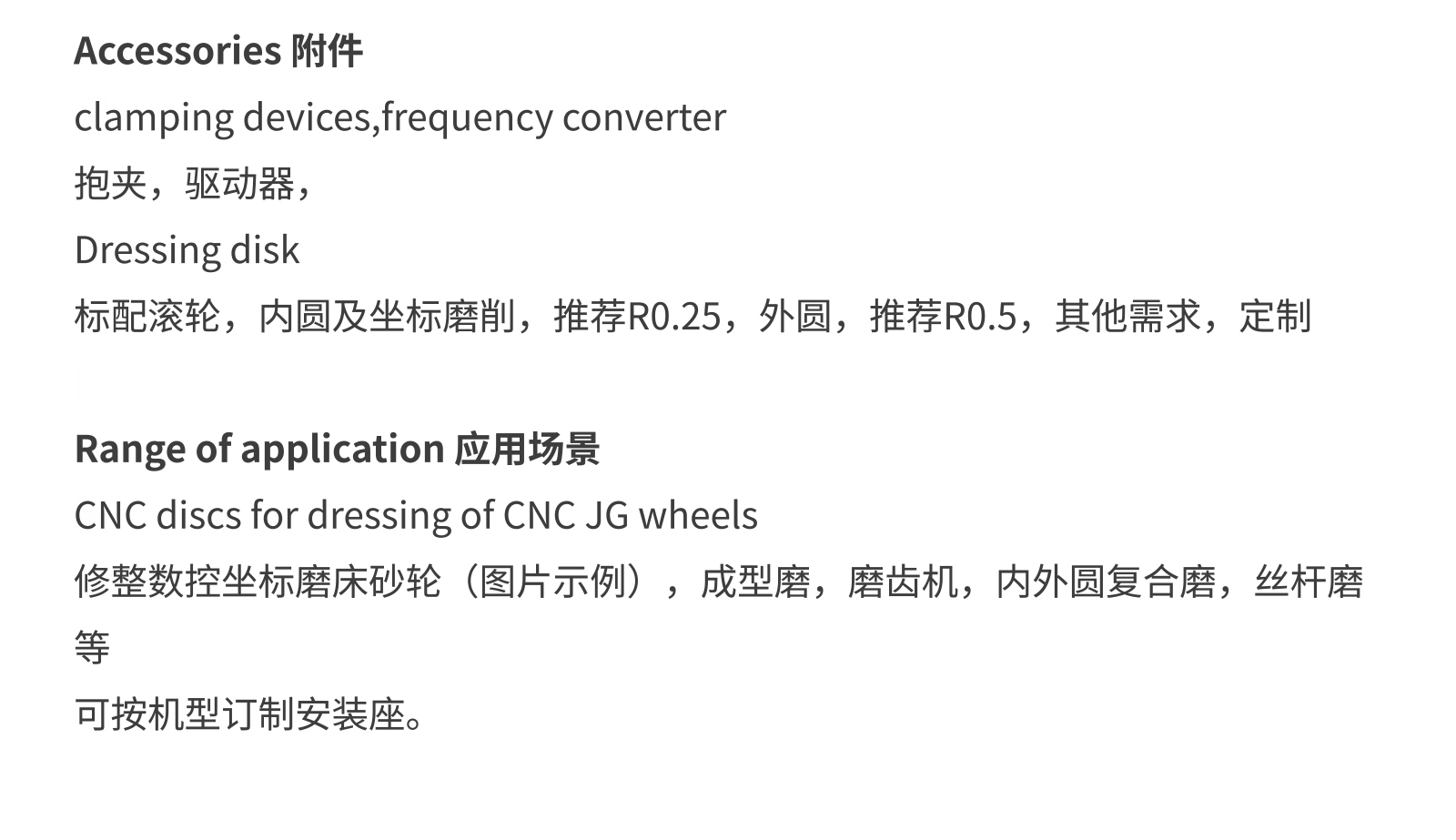

Accessories
clamping devices,frequency converter
Dressing disk
Range of application
CNC discs for dressing of CNC JG wheels
The mounting seat can be customized according to the model.
DOWNLOAD
No data
Dressing-Spindle
• High precision: spindle runout<0.001mm, hydraulic tightening, roller runout < 0.003mm
• High rigidity: The trimmer shaft core uses high damping material to greatly absorb the impact of modification and improve the effect of modification
• High power: High power, high torque output. Greatly reduce the grinding wheel dressing time.
