Elaborate
Repeated clamping accuracy ≤0.001mm, 4 times diameter runout ≤0.001mm
Case: Reaming size accuracy up to 0.002mm
Faster
Quick knife change in 15 seconds
Knife length positioning function
Significantly reduce switching time
Case: Monthly productivity can be increased by more than 30%
Economize
High damping characteristic
Greatly improve tool life
Greatly reduce tool wear
Case: The cost of the tool can be reduced by more than 30%, and the service life of the dental punch tool is greatly increased from 2000PCS to 8000PCS

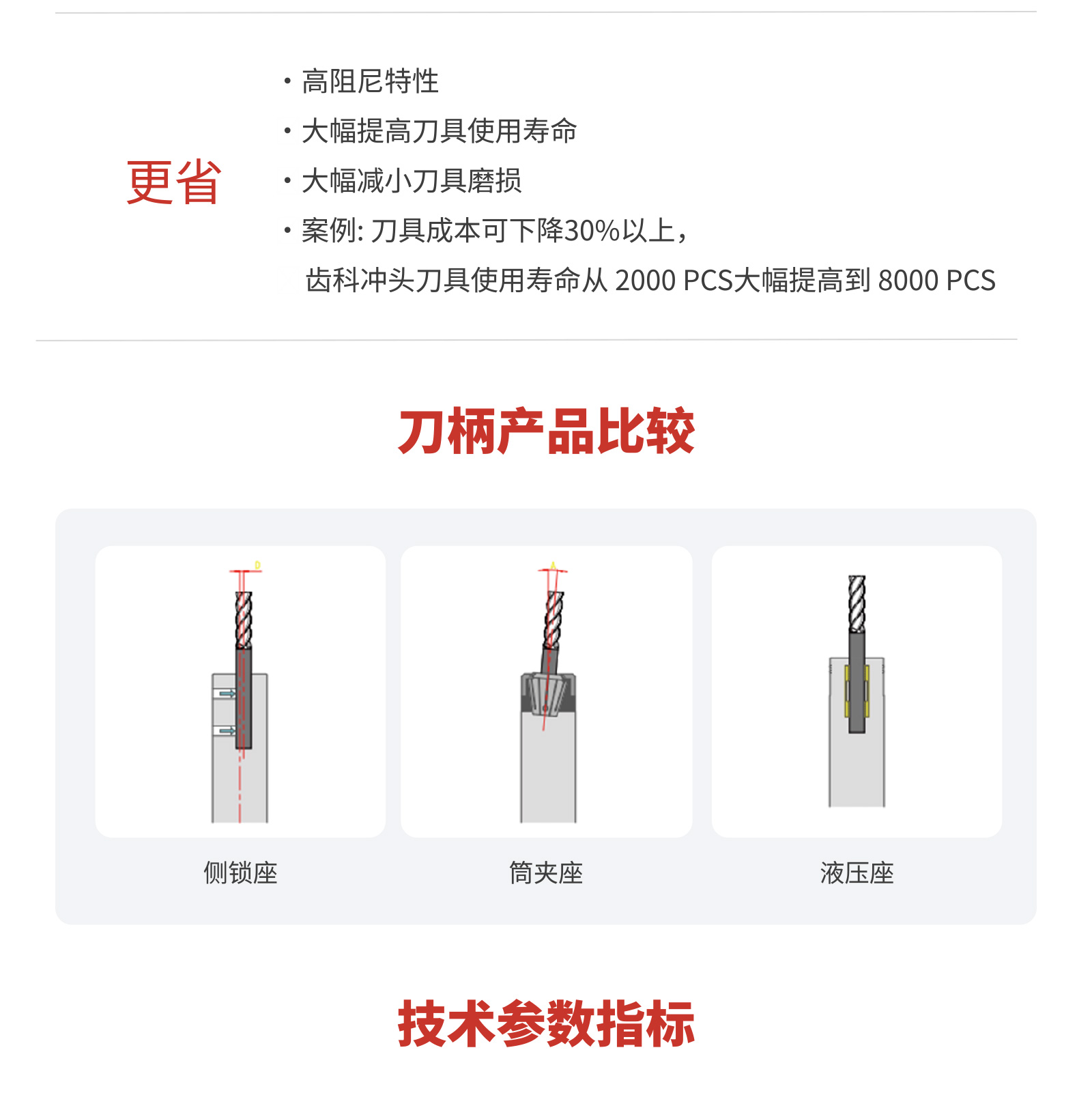

TOOL HANDLE PRODUCT COMPARISON
Side lock seat
Collet seat
Hydraulic seat
Technical parameters & Indicators
Front fastening type
● Standard for easy installation on various tool holders
● The coolant pipe is connected with 1/8 screws for drill with oil holes
● Adjustable screws are available in some models
Note:
1. L1 indicates the cut-off range.
2. Cutting tool adjustment H is the adjustment amount when using axial adjustment screws, the model with ▲ cannot use axial adjustment screws, and the size of H is the maximum tolerance intake.
3. The axial adjustment screws can also be adjusted from the tool handle.
Models with ★ symbol contain a small amount of coolant flowing out of the inner diameter slit when coolant is used.
